Cancer-associated circulating atypical cells with both epithelial and macrophage-specific markers

In 2014, Adams et al. (1) reported on atypical circulating macrophages, that they named circulating cancer-associated macrophage-like cells (CAMLs), detected in the blood of breast and pancreatic cancer patients following enrichment by blood filtration. The Authors identified CAMLs as “giant cells of myeloid lineage (CD14+/CD11c+)* presenting with enlarged nuclei, CD45+ and exhibiting cytoplasmic staining by cytokeratins 8, 18 and 19 and epithelial cell adhesion molecule (EpCAM)”. In the same year and month, Lustberg et al. reported about a population of circulating “atypical cells” expressing cytokeratins 8, 18 and 19, CD45 and CD68 markers without concomitant expression of EpCAM in the blood of metastatic breast cancer patients (2). Recent reports about circulating atypical macrophages have now shed more light on these cells, on the possible mechanism of their formation and on their relevance in tumor invasion.

Earlier studies had pointed out the heterogeneous nature of circulating “atypical cells”, in particular regarding circulating tumor cells (CTCs), endothelial and epithelial cells, fibroblasts, macrophages and megakaryocytes (3,4). However, only cytomorphological studies were possible at that time, as no immunolabelling-mediated characterization was available.

In 2012, Chen et al. used flow cytometry to detect circulating macrophages expressing CD68 and B7-H4, an antigen known to be expressed in tumor cells, in the blood of 56 lung cancer patients (5). Although the authors did not further characterize those cells, they showed that CD68+ and B7-H4+ circulating macrophages significantly correlated with tumor size and lymph node metastasis in their patient cohort.

Macrophages, derived from blood monocytes through differentiation, are innate immune cells involved in tissue homeostasis, inflammatory responses and wound healing (6). Usually categorized in a binary classification [M1, mainly pro-inflammatory, and M2, mainly anti-inflammatory and pro-tumorigenic, phenotypes (7)], macrophages are nonetheless recognized as a highly heterogeneous population displaying extensive plasticity in terms of molecular markers (8). Macrophages infiltrating the tumor tissue, termed tumor-associated-macrophages (TAM), have been long recognized as a functional feature of cancer (9), often related to poor prognosis of cancer patients (7). The possible involvement of macrophages in tumor cell intravasation, migration and extravasation at distant organ sites has been proposed to explain the role of TAM as prognostic indicators (10,11). In human cancer tissue sections, the presence of TAM is usually evidenced through immunostaining of the CD68 transmembrane glycoprotein (12). Yet, antibodies targeting CD14, CD16, CD163, CD204 or CD206 are also used to identify macrophages in situ (12)

Adams et al. and Lustberg et al. described for the first time circulating atypical cells with concomitant expression of macrophage-specific and epithelial cell-specific markers. Adams et al. speculated that CAMLs may represent different stages of myeloid differentiation and/or derive from non-specific engulfment of epithelial cellular debris. They also described that some CAMLs bind to and migrate in blood attached to CTC (1). Lustberg et al. noted that circulating CD45 positive, CK positive, CD68 positive cells were absent in healthy subject and in higher number in metastatic patients (2). Shortly thereafter, in 2015, Clawson et al. reported on cells that were thought to derive from fusion of macrophages with tumor cells (MTFs) by culturing blood from melanoma patients. Cultured cells were large with pseudopod extensions and lamellipodia, with highly heterogeneous aneuploidy/polyploidy, expressing macrophage M2 markers (CD204, CD206 and CD163), melanocyte markers (ALCAM, MLANA) and epithelial markers (cytokeratins and EpCAM). MTFs generated metastases upon injection in nude mice. Since cells with these characteristics were also found in the melanoma tissues, the Authors concluded that MTFs are present in the blood of patients with melanoma and can potentially generate metastasis (13).

In a report published in 2016 by Adams et al., CAMLs were further defined as cytokeratin-positive enlarged multinuclear cells expressing either CD14 or CD45 or both, to account for the heterogeneous marker expression profiles exhibited by CAMLs (14). The Authors also showed that CAMLs were present in 93% of blood samples from advanced stage breast cancer patients while none of the 16 healthy subjects presented CAMLs in their blood (14). However, 5 of 19 patients (26%) with benign breast conditions such as ductal hyperplasia, also scored positive for CAMLs, showing that CAMLs cannot be used to distinguish between breast cancer and benign breast diseases. The following year, Mu et al. determined the prognostic value of baseline CAMLs enumeration in metastatic breast cancer patients, showing a significant correlation of CAMLs numbers with patients’ survival (15) and Zhang et al. demonstrated that, actually, macrophages can acquire expression of epithelial markers (cytokeratins, EpCAM) as well as stem cell markers (Oct4) upon phagocytosis of apoptotic cancer cells (16). Using density gradient centrifugation to isolate monocytes from patients with breast, cervical, ovarian, endometrial and pancreatic cancers, the Authors evidenced the presence of CD163 and EpCAM double-positive cells, which they called “tumacrophage”, in the blood of cancer patients (16). Importantly, like CAMLs, tumacrophages were consistently absent from the blood of healthy donors, suggesting their possible clinical value as a biomarker of cancer (1,14,16). Later on, in 2018, Li et al. reported on a class of circulating cells, which they called macrophage-like CTCs (ML-CTC) on the basis that those cells express macrophage markers (CD14 and CD68) and tumor markers (C-kit, DOG-1 and cell-surface vimentin) without concomitant CD45 expression, that they found in the blood of patients with metastatic gastrointestinal stromal tumors (GISTs) (17). The authors found that these patients had significantly greater numbers of ML-CTC than patients with localized GIST or cancer-free blood donors and hypothesized that CAMLs or ML-CTC may interact with CTC or other cells in the blood to promote metastases.

Recently, further light has been shed on the puzzling heterogeneity of circulating atypical macrophages. Gast et al. have demonstrated that the fusion of neoplastic cells with macrophages occurs in vivo and can generate hybrid cells with various combinations of phenotypes exhibiting enhanced metastatic behavior (18). Using a GFP+ mouse model with isogenic RFP+ tumors, the authors determined that fusion hybrid cells outnumber the canonical CTC in the blood of tumor-bearing mice, representing 90% of the tumor cells in circulation. Importantly, by sampling blood from pancreatic cancer patients at various stages, although in limited number, Gast et al. also demonstrated that circulating hybrid cells expressing cytokeratins and the CD45 leukocyte marker correlated with advanced disease while canonical CTC (expressing cytokeratins but not CD45) did not correlate with disease stage or patient survival (18).

The concept that hybrid malignant cells could be the result of a fusion between myeloid cells and cancer cells dates back to 1911 (19). However, convincing evidence of such mechanism taking place in vivo and in tissues has only recently emerged (20). Furthermore, macrophage fusion with cancer cells in tissues had been proposed to explain the simultaneous presentation of macrophage epitopes and epithelial markers on hybrid cancer cells (13,21). Still, the report from Gast et al. provides extensive evidence about this phenomenon, the proof that these hybrid cells circulate in blood and that they display increased metastatic behavior.

Whether all circulating atypical cells with epithelial and macrophage-like features arise preferentially from cell fusion, or some of them derive from phagocytosis or other interactions between neoplastic cells and macrophages or mesenchymal stem cells (22,23), remains to be further elucidated (see Figure 1). Considering that those heterogeneous circulating atypical cells are increasingly recognized as valuable prognostic indicators in patients with breast, pancreatic and gastrointestinal cancers (Table 1), more studies are needed to generate a consensus sub-classification and identify possible correlations of specific cell subtypes with clinical data. However, the published scientific studies on atypical circulating cells with epithelial- and macrophage-specific markers strongly suggest their potential relevant role in tumor invasion, opening a new field of investigation for diagnostic and therapeutic improvements in cancer patients.

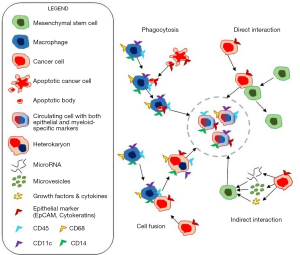

Figure 1 Possible mechanisms involved in the origin of circulating atypical cells with both epithelial and macrophage-specific markers.

Acknowledgments

This work was supported by funds from Fondation pour la Recherche Médicale, FondationBettencourt-Schueller, Fondation Lefort-Beaumont de l’Institut de France, INSERM, and Université Paris-Descartes.

Footnote

Provenance and Peer Review: This article was commissioned and reviewed by Section Editor Dr. Dao-Jun Hu (Department of Clinical Laboratory, Xin Hua Hospital Affiliated to Shanghai Jiao Tong University School of Medicine, Chongming Branch, Shanghai, China).

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jlpm.2018.10.05). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

^*Note: all cellular markers mentioned in the text, figure or table are further defined here according to the information found in RefSeq Gene ID from PubMed 2018. B7-H4 is a cell surface antigen (encoded by the VTCN1 gene, meaning V-set domain containing T cell activation inhibitor 1) which interacts with ligands bound to receptors on the surface of T cells and has been correlated with tumor progression. The CD163 protein is a member of the scavenger receptor cysteine-rich superfamily and is exclusively expressed at the cell surface by monocytes and macrophages. CD146 refers to the Melanoma Cell Adhesion Molecule (MCAM) which is expressed in the cytoplasm of adipose and stromal progenitor cells. The CD68 protein is a transmembrane glycoprotein which is highly expressed by human monocytes and tissue macrophages. CD45 refers to the protein tyrosine phosphatase receptor type C (PTPRC) which is a transmembrane receptor expressed by mature leukocytes. The CD14 protein is a cell surface antigen expressed on monocytes and macrophages, but also present on other subtypes of myeloid cells such as dendritic cells. CD11b refers to the integrin subunit alpha M (ITGAM) and CD11c to the integrin subunit alpha X (ITGAX) which are both parts of leukocyte-specific integrins. CD133 refers to prominin 1, a transmembrane glycoprotein which localizes to membrane protrusions and is often expressed on adult stem cells, where it is thought to function in maintaining stem cell properties by suppressing differentiation. CD204 refers to the macrophage scavenger receptor 1 (MSR1) which is a macrophage-specific trimeric integral membrane glycoprotein. CD206 refers to the mannose receptor C-type 1 (MRC1) which is a type I membrane receptor that mediates the endocytosis of glycoproteins by macrophages. Cytokeratins (CK) are intermediate filaments expressed in epithelial tissues and are often used as a specific marker of epithelial cells. The epithelial cell adhesion molecule (EpCAM) is a membrane protein expressed on most normal epithelial cells that functions as a homotypic calcium-independent cell adhesion molecule. Vimentin is a type III intermediate filament protein which is responsible for maintaining cell shape and integrity of the cytoplasm in mesenchymal cells but has also recently been associated with tumor cells when expressed at the cell surface [i.e., cell surface vimentin, (CSV)].
