Measurement of vitamin D metabolites by mass spectrometry, an analytical challenge

Introduction

In recent years, vitamin D has gained enormous attention from patients, the medical community, and the public and scientific world. The great interest in vitamin D-related health issues is due to an increased awareness of the high prevalence of vitamin D deficiency, its associations with bone health and multiple non-bone-related diseases. At present, 25-hydroxy vitamin D(25(OH)D) is the recommended test for the assessment of vitamin D status (1). Despite the availability of a reference method (2,3), a reference material (NIST SRM 2972) and a vitamin D standardization program (VDSP) the comparability of 25(OH)D results between laboratories and methods is still problematic (4). The vast majority of laboratories use automated immunoassays for the measurement of 25(OH)D, which harbor a range of intrinsic analytical issues that are difficult to overcome. For example, more than 99% of 25(OH)D in blood is bound to vitamin D binding protein, albumin and other carriers. Releasing vitamin D efficiently from these carriers is difficult for automated immunoassays, as they can’t use strong organic solvents, such as methanol or acetonitrile. Selectivity is another problem. Assays are expected to measure 25(OH)D₂ and 25(OH)D₃ in an equimolar fashion without detecting any of the other chemically related vitamin D metabolites or steroid hormones that are also present in blood. Last but not least, immunoassays are subject to matrix interferences, such as heterophilic antibodies, which have a prevalence of up to 13% in the general population (5,6).

In general, liquid-chromatography-tandem-mass-spectrometry (LC-MS/MS) does not suffer from the above mentioned limitations and is considered the gold standard for the measurement of 25(OH)D. The impact of analytical variability has recently been shown by a re-standardization of 55,844 previously measured samples from 14 population studies, which confirmed substantial over- or underestimation of 25(OH)D by most immunoassays (7). For this re-standardization the authors used VDSP protocols that require the reanalysis of a subset of 100–175 biobanked samples from each study with a certified LC-MS/MS method, which is traceable to the NIST higher-order reference measurement procedure (RMP) (3,8). The results were used to develop master regression equations for the re-standardization of all data points. However, the principal advantages of LC-MS/MS can only be obtained when the instrument provides sufficient sensitivity, the method is traceable to the NIST SRM 2972 standard and a proper validation of the analytical system has been performed. Moreover, when using LC-MS/MS in population studies, throughput and automation are important aspects to consider.

Despite many advantages, LC-MS/MS methods are not free from analytical challenges. A comparison of three LC-MS/MS methods from independent laboratories demonstrated relevant differences (9). In external quality assurance programs the 25(OH)D results obtained by LC-MS/MS methods can vary for more than 100% (10).

Beside the difficulties related to 25(OH)D, measurement of 24,25(OH)₂D and 1,25(OH)₂D is also challenging. Both analytes have similar physical and chemical properties as 25(OH)D and share the same analytical difficulties. While 1,25(OH)₂D can be analyzed by radioimmunoassay (RIA), automated immunoassays and LC-MS/MS no immunoassays exist for the quantitation of 24,25(OH)₂D. Because of the analytical issues related to the measurement of vitamin D, LC-MS/MS is most suited for the quantitation of both analytes. The capability of LC-MS/MS methods to detect multiple analytes simultaneously has also triggered attempts to measure two or more vitamin D metabolites in one analytical run. While an extensive number of original studies and review articles has addressed the performance of 25(OH)D immunoassays, the analytical challenges regarding the measurement of vitamin D metabolites by LC-MS/MS are not widely known. Therefore, the aim of this review is to provide a comprehensive overview about existing LC-MS/MS methods for the measurement of vitamin D metabolites and their analytical performance.

Vitamin D structure and metabolism

The analytical challenges related to the measurement of vitamin D arise at least partially from the fact that in human blood over 50 vitamin D metabolites circulate with variable activity (11).^.Although 25(OH)D and 1,25(OH)₂D are the only compounds that are routinely measured in clinical laboratories others, such as 24,25(OH)₂D, have gained substantial interest and may add additional clinical information. It is therefore important to understand the chemistry and metabolism of the principal vitamin D metabolites (Figure 1) (12).

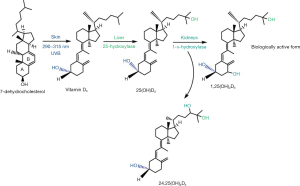

Figure 1 Endogenous vitamin D synthesis and catabolism.

The term vitamin D does not refer to a single compound rather than to a group of fat-soluble secosteroids that are derived from cholesterol. Secosteroids are characterized by a broken bond in the B-ring of the four-ring steroid core. Vitamin D₃ (cholecalciferol) and D₂ (ergocalciferol) are the two principal forms of vitamin D in human blood, which differ in the composition of their side chains. In contrast to vitamin D₂, the side chain of vitamin D₃ harbors a double-bond between carbons 22 and 23 and a methyl group on carbon 24. Vitamin D₃ represents the endogenous form of vitamin D in humans and is synthesized in the skin (13). Vitamin D₂, instead, is ingested via the diet, fortified foods or vitamin supplements.

The endogenous synthesis of vitamin D₃ in the skin requires 7-dehydrocholesterol, a precursor of cholesterol, as a substrate. As a principal component of the plasma membrane of cells in both the dermis and epidermis, cholesterol is essential for the epidermal barrier function. In addition, cholesterol modulates epidermal differentiation and desquamation. The skin ensures an adequate supply with cholesterol through active local synthesis. Epidermal cholesterol synthesis provides a ready source of 7-dehydrocholesterol (provitamin D). Vitamin D synthesis in the skin starts with the opening of the B-ring of the steroid ring system. Irradiation of 7-dehydrocholesterol with UV-B light breaks the bond between carbons 9 and 10. The resulting 9,10 secosteroid (previtamin D₃) is unstable and readily undergoes isomerization (13). Spontaneous rotation of the A-ring around the bond between carbons 5 and 6 converts unstable previtamin D₃ into the more stable isomer vitamin D. This isomerization process interrupts the hydrophobic and hydrophilic interactions that hold previtamin D₃ within the cell membrane so that the newly formed vitamin D₃ is expelled into the interstitial fluid. Vitamin D binding protein (VDBP) in the capillaries of the dermis avidly binds vitamin D and the resulting concentration gradient of free vitamin D drags vitamin D from the interstitial fluid into the circulation (14).

Vitamin D hides little biological activity. Two sequential hydroxylation steps are necessary to convert inactive vitamin D into the biologically active metabolite 1,25(OH)₂-vitamin D. The first hydroxylation reaction attaches a hydroxyl-group in position 25 and is catalyzed by the enzyme CYP27A (25-hydroxylase). The resulting 25(OH)-Vitamin D (25(OH)D) represents the most abundant circulating form of vitamin D, which is still inactive (15). Through the addition of a second hydroxyl-group in position 1 (catalyzed by CYP27B [1-hydroxylase]) the active compound 1,25(OH)₂D is formed. Although the kidneys are the principal sites of 1,25(OH)₂D synthesis, many other tissue types can express CYP27B1 and therefore produce 1,25(OH)₂D locally (16,17). Hydroxylation in position 24 (CYP24A1) is the first step in the catabolism of 25(OH)D and 1,25(OH)₂D. The resulting metabolites 24R,25(OH)₂D and 1,24R,25(OH)₃D are inactive (18).

Measurement of vitamin D metabolites by LC-MS/MS: pre-analytical and analytical aspects

Sample types

Sample type is a critical aspect that should always be considered when measuring biomarkers in biological fluids including plasma and serum. In the literature there are only very few studies that compared serum and plasma measurements of vitamin D and its metabolites (19). The major difference between plasma and serum is the removal of fibrinogen and other coagulation factors that are consumed by clotting of the sample. The absence of these proteins allows an increasing concentration of organic solvents and formic acid during pre-analytical sample preparation for LC-MS/MS analysis and thus enhancing protein precipitation. In general, available data show neither in 25(OH)D immunoassays nor in LC-MS/MS methods systemic differences between plasma and serum (20,21). For example, Colak et al. (22) measured 25(OH)D in serum and plasma from 15 healthy adults using an automated immunoassay from Roche Diagnostics (Roche Diagnostics, Mannheim, Germany) and found no significant difference under different storage conditions. Zhang et al. (19) compared 25(OH)D₂ and 25(OH)D₃ results obtained by a fully validated in-house LC-MS/MS method in matching serum and plasma samples containing either heparin or EDTA. No significant difference was observed regardless of the anticoagulant used. Similar findings were reported by Lee et al. and Mena-Bravo et al., the latter also considered 24,25 (OH)₂D₃. Inconsistent results have been observed for vitamin D metabolites with very low concentrations, such as 1,25(OH)₂D (20,23). Mena-Bravo et al. found 60% higher 1,25(OH)₂D₃ results in plasma than in serum whereas Ishige et al. (21) did not observe such a difference. In contrast, Abu Kassim et al. measured nine different vitamin D metabolites by LC-MS/MS and observed higher concentrations in serum than in EDTA (24).

The use of separation gels in blood collection tubes is another important factor that may interfere with the measurement of vitamin D and its metabolites. Mena-Bravo et al. showed that neither in plasma nor in serum tubes from Becton-Dickinson the presence of a separation gel caused a difference for vitamin D₃, 24,25(OH)₂D₃, 25(OH)D₃ and 1,25(OH)₂D₃. However, composition of separator gels differs between vendors. Therefore, each type of gel tube should be validated individually before use in clinical practice.

Taken together, for the measurement vitamin D and 25(OH)D serum or plasma can be used safely. Also separator gels are unlikely to have an impact on the results. However, in view of the different gel compositions on the market it is prudent to test each tube type prior to clinical routine use. For other vitamin D metabolites no general recommendation can be given as data are inconsistent or lacking.

Sample preparation: protein extraction

In serum and plasma vitamin D and its metabolites are tightly bound to VDBP, albumin and lipoproteins. For example, approximately 90%, of circulating 25(OH)D is protein bound (25) and thus needs to be released and purified prior to analysis. A range of different extraction procedures have been described in the literature. All these methods use strong organic solvents to precipitate proteins and release vitamin D metabolites from carrier compounds. Subsequently, an additional extraction step is performed in order to increase purity and reduce interferences during analysis. In general, two types of extraction techniques can be distinguished, solid phase extraction (8) and liquid-liquid extraction (LLE). It should be mentioned that automated immunoassays have to use a completely different approach for the extraction of vitamin D metabolites as they can’t work with strong organic solvents.

During protein precipitation, the tertiary structure of the proteins is destroyed and vitamin D metabolites are released. Methanol, acetonitrile or zinc sulphate is typically used for protein precipitation (26). Different mixtures of these precipitants and several stabilizing additives have been described in the literature (Table 1). While methanol and acetonitrile break down predominantly proteins, zinc sulphate precipitates also lipoproteins (4,36). Beside protein precipitation, saponification is an alternative approach for the release of vitamin D from its carriers (30). Saponification is performed by adding potassium hydroxide in ethanol containing 20% (w/v) ascorbic acid to the sample, which breaks the ester linkages of triglycerides, phospholipids and esterified sterols thereby releasing vitamin D compounds. A comparison between saponification and protein precipitation revealed a more efficient extraction when protein precipitation is used. An alternative saponification method has been described by Huang et al. (45). This method uses methanol with 2% pyrogallic acid and potassium hydroxide. When compared to room temperature, heating accelerates the extraction process and allows faster sample preparation.

Sample preparation: extraction of analytes

The supernatant that remains after protein precipitation still contains multiple interfering compounds that need to be eliminated prior to analysis. Therefore, an appropriate and efficient extraction procedure is the key for an accurate quantitation of vitamin D metabolites (35). The choice of extraction procedure depends on the vitamin D metabolite of interest. Because of its relative abundance the extraction procedure has less impact on the determination of 25(OH)D than for other metabolites that circulate at low concentrations, such as 24,25(OH)₂D or 1,25(OH)₂D. Both, LLE and SPE are widely used in the literature and in general one is not better than the other. During LLE an organic solvent, such as heptane, hexane, ethylacetate or ethyl-tert-butyl ether is added to the supernatant obtained after protein precipitation (20). After thorough mixing and centrifugation, the supernatant, which contains the purified vitamin D metabolites, is dried under a constant flow of nitrogen or high pressure air and subsequently reconstituted in either acetonitrile or methanol. In order to amplify the detection signal some methods add a derivatization agent to these organic solvents. Sample derivatization enhances ionization and is particularly helpful when measuring analytes with a low concentration. Derivatization strategies will be discussed in more detail later. After reconstitution, a derivatization sample is ready for analysis. Although LLE is more difficult to automate and has largely been replaced by SPE, many scientists continue to use it even today due to its simplicity, flexibility and affordability. When compared to SPE, LLE often has lower extraction efficiency due to matrix effects in the sample. However, this disadvantage can be compensated by using atmospheric pressure photoionization (APPI) (38). Acetone and isopropanol appear to possess the highest extraction capacity (partition coefficient for vitamin D). However, repeatability of LLE with isopropanol unsatisfactory as imprecision has been found to be greater than 25%. Tai et al. (2) developed a method for measurement of 25(OH) vitamin D₂ and D₃ also with LLE using hexane-ethyl acetate (50:50). The National Institute of Standards and Technology (NIST) has used this measurement procedure to certify the concentrations of 25(OH)D₃ and 25(OH)D₂ in a new standard reference method (SRM) for vitamin D in human serum.

Solid-phase extraction is the most frequently used extraction technique for the measurement of vitamin D metabolites, which exploits the affinity of solutes dissolved or suspended in a liquid (mobile phase) for a solid (stationary) phase through which the sample is passed. Modified silica-based sorbents are typically used for the extraction of non-polar analytes (8). Alternatively, polymeric sorbents with higher capacity and selectivity than silica based sorbents can also be used. The analytes of interest are retained on the stationary phase. After eliminating matrix components from the stationary phase by washing with an aqueous solution, the analyte is eluted with an organic solvent and introduced into the analytical system. On-line SPE integrates the extraction procedure in the analytical system thus reducing manual intervention and increasing productivity. SPE columns differ in length (1–5 cm) and diameter (0.5–5 mm), particle size (≤5 µm) and porosity (≤100 Å). Most importantly is the amount of sorbent. Extraction efficiency improves with optimal adjustments between analyte properties, surface characteristics of the column material and mobile phase. Table 1 provides an overview about commonly used SPE columns.

SPE and LLE are both acceptable methods for the extraction of vitamin D metabolites from serum or plasma samples, because better precision, cheaper costs and the possibility of automation SPE is more frequently used than LLE.

Sample preparation: derivatization

The low ionization efficiency of vitamin D metabolites and interferences from chemically similar compounds are other analytical challenge when measuring vitamin D by LC-MS/MS. Derivatization is a frequently used strategy in analytical chemistry where the analytes of interest are chemically transformed in order to modify their physical and chemical characteristics. The goals of derivatization include improvements in thermostability, ionization and thus sensitivity. Furthermore, derivatization can increase volatility and induce mass shifts of analyte ions away from interfering signals. LC-MS/MS procedures for the measurement of vitamin D metabolites often include a derivatization step (46). Because of its relative abundance 25(OH)D does necessarily require derivatization. However, metabolites that are present at low concentrations, such as 24,25(OH)₂D or 1,25(OH)₂D rely on an amplification of the signal by derivatization.

Various derivatization reagents have been described for the measurement of vitamin D metabolites (26). The most frequently used derivatization reagents are Cookson-type derivatizing agents, such as 4-phenyl-1,2,4-triazoline-3,5-dione (PTAD), 4-[4-(6-methoxy-2-benzoxazolyl)phenyl]-1,2,4-triazoline-3,5-dione (MBOTAD), 4-ferrocenylmethyl-1,2,4-triazoline-3, 5-dione (FMTAD), and 4-[2-(6,7-dimethoxy-4-methyl-3-oxo-3,4-dihydroquinoxalyl)-ethyl]-1,2,4-triazoline-3,5-dione (DMEQTAD). Cookson-type reagents are 4-substituted 1,2,4-triazoline-3,5-diones with a chromophore, fluorophore or electrophore at the 4-position that form a stable Diels-Alder adduct through which ionization efficiency improves 100 to 200 times (47).

2-Nitrosopyridine (PyrNO) is an alternative derivatization reagent that contains a reactive dienophile and also forms Diels-Alder adducts (48). Derivatization with PyrNO has been found to improve multiple reaction monitoring (MRM) signals (intensity) compared to PTAD, which is used frequently. Amplifex is another derivatization agent that should be mentioned as it appears to be most efficient the measurement of 1,25-(OH)₂D₂ and 1,25-(OH)₂D₃ due to its a positively charged end group and activated dienophile moiety (49).

In summary, derivatization is frequently used for the measurement of vitamin D metabolites, especially when metabolites with a low concentration are to be determined. PTAD is the most frequently used derivatization agent but newer compounds may be more efficient for certain vitamin D metabolites. Therefore, the choice of derivatization agent should take into account the nature and concentration of the analytes of interest.

Chromatographic separation of extracted samples

LC-MS/MS combines liquid chromatography with mass spectrometry (MS) in order to increase specificity. The goal of liquid chromatography is the separation of compounds in a complex mixture thus isolating the analytes of interest from background noise. Based on its physicochemical properties each compound is retained differently on the stationary phase inside the chromatography column and is eluted at a specific time, which is called retention time. The combination of stationary phase (material, particle size and porosity), column type (length, diameter), mobile phase and flow rates determines the separation efficiency and the retention time for each compound in the sample. For the separation of hydrophobic compounds, such as vitamin D metabolites, a hydrophobic stationary phase is required, which is also referred to as reversed-phase (hydrophilic stationary phases are considered normal-phase).The stationary phase for reversed-phase liquid chromatography is an inert substance, such as silica, with non-polar side-chains attached to it (50). The most frequently used stationary phase for the measurement of vitamin D compounds is octadecyl carbon chain (C18)-bonded silica. In order to improve separation efficiency the manufacturers of chromatography columns attach pentafluorophenyl or cyano moieties to the C18 chains. These modification increase hydrophobicity and improve durability in an aggressive environment with high temperatures and an aggressive pH. The quantity of C18 chains (carbon load), the presence of spacer molecules and the surface (particle size and porosity) determine selectivity and separation performance of an LC column. Hundreds of different columns are commercially available. For the measurement of vitamin D metabolites the most frequently used LC columns are LiChrospher RP-18 (Merck, Germany), Zorbax Eclipse XDB C-18 or Zorbax SB-C18 (both from Agilent, USA), Supelcosil LC-18 (Sigma-Aldrich, Germany), X Terra C18 and ACQUITY UPLC BEH C18 (both from Waters, USA) Hypersil Gold (Thermo Scientific, USA). Apart from differences on the stationary phase material, LC columns differ in length (5–25 cm), diameter (1–5 mm), particle size (1.6–4.6 µm) and porosity (≤100 Å and until 130 Å for columns using UPLC). Separation efficiency improves with increasing column length, higher porosity, decreasing diameter and smaller particle size. However, the pressure in the column increases with increasing column length and decreasing column diameter and particle size. Therefore, the choice of LC columns depends on the chemical properties of the analytes of interest, the type of pump connected to the system and the extraction efficiency needed.

In order to apply a sample to the LC column a mobile phase is needed as a carrier. The composition of mobile phases is a key factor for the successful chromatographic separation of a sample. For the measurement of vitamin D an aqueous and an organic mobile phase are needed. The aqueous phase, which is typically water stabilized with formic acid, is used to apply the sample to the column. The organic mobile phase is needed for the elution of hydrophobic analytes from reversed phase columns. Methanol stabilized with formic acid (0.005% to 5%) or ammonium acetate (2–5 mM) is typically used as organic mobile phase. Formic acid and ammonium acetate impair contamination with bacteria or other contaminants. Alternative mobile phases are acetonitrile or ethanol diluted in water. The flow rate for chromatographic separation varies between 0.35–1.0 mL/min depending on the column used (26).

Chromatographic separation can be performed HPLC (high performance liquid chromatography), ultra-high performance liquid chromatography (UHPLC) or ultra-performance supercritical fluid chromatography systems (UPSFC). UHPLC systems use a higher pressure to pump the mobile phase through the column and the rest of the system. The columns for HPLC and UHPLC differ in particle size, length and diameter. Superior speed, resolution and sensitivity make UHPLC the preferred technique for the analysis of vitamin D metabolites. UPSFC has further improved separation and run time (51).

Mass spectrometry

MS is a highly sensitive and selective analytical technique that has the ability to overcome most of the limitations inherent to immunoassays, such as interferences from binding proteins, heterophilic antibodies and cross reactivity with other steroid compounds. After chromatographic separation, samples are introduced into the mass spectrometer where they are vaporized and ionized. Subsequently, the ions travel through three electrically charged quadropoles that filter ions based on their mass to charge ratio (m/z). The first and third of these quadrupoles allow only ions with a specific m/z to pass. All other ions are eliminated and do not reach the detector. In the second quadrupole, ions that have passed successfully the first quadrupole are fragmented by collision with an inert gas, such as nitrogen, helium or argon. In the collision cell every parent ion produces a specific spectrum of fragment ions from which two of the most abundant fragment ions are selected and filtered in the third quadrupole and reach the detector. One of these ions serves as qualifier and the other one is used for quantitation. The qualifier ensures the presence of the correct parent ion in the second quadrupole whereas the quantifier is used to calculate the concentration of the analyte in the sample (35).

Ionization and vaporization can take place in the ion source and can occur in different ways. The different forms of ionization have specific advantages and disadvantages that need to be considered when selecting a method. The most common ionization technique is electrospray ionization (ESI) where the sample is introduced into the source through an electrically charged needle with a high potential difference (2.5 to 5 kV) that forces spraying of charged droplets from the needle. As the surface of the droplets formed have the same charge as the needle they are repelled from the tip of the needle and travel towards the sampling cone on the counter electrode. While travelling the solvents of the droplets evaporate so that the droplets shrink until the surface tension can no longer sustain the charge (the Rayleigh limit) at which point a “Coulombic explosion” occurs and the droplet is ripped apart. This produces smaller droplets that can repeat the process as well as naked charged analyte molecules. ESI is considered a soft ionisation method as very little residual energy is retained by the analyte upon ionisation (52).

Further ion sources often used for mass spectrometric analysis of vitamin D metabolites are chemical ionization (1) and atmospheric-pressure chemical ionization (APCI) (53). During CI charged ions of the analyte molecules in the sample are produced through collision with high energy molecular ions of a collision gas. The collision gas that is present in large excess is ionized by bombardment with electrons that enter the source with an energy of around 200–500 eV at a pressure of 0.2–2 Torr. Common reagent gases are methane, ammonia and isobutane. Compared to other ionization techniques CI causes less fragmentation of the analytes resulting in simpler and more sensitive spectra. While CI requires high pressure inside the ion source, APCI occurs at atmospheric pressure. The mixture of analytes and solvents that exit the HPLC system enter the ion source through a capillary inside an uncharged quartz tube. At the end of the capillary the sample is nebulized and vaporized with the help of nitrogen gas and by heating to very high temperature (~350–550 °C). Subsequently the vapor passes a highly charged electrode (several kV) that ionizes nearby molecules without fragmentation. This highly charged electrode is called corona needle. Discharge of the corona needle may directly ionize analyte molecules or solvent molecules. As solvent molecules are typically present in large excess it is more likely that solvent molecules are ionized first and subsequently pass their charge onto the analyte molecules. A typical APCI ion source consists of a nebulizer probe, an ionization region with a corona discharge needle, and an ion-transfer region under intermediate pressure. Similar to CI, APCI is a soft ionization method. The main usage of APCI is for polar and relatively less polar thermally stable compounds with molecular weight less than 1,500 Da (54).

A main difference between ESI and chemical ionization techniques is the degree of fragmentation and the production of multiple-charged ions, which effectively expands the mass range. ESI is the most frequently used ionization method for the analysis of 25(OH)D (55). However, for the detection of vitamin D metabolites with concentrations in the picomolar range ESI does not achieve a satisfactory LOD. Using ESI the LOD for 25(OH)D₃ and D₂ has been shown to be 2–5 times higher than with APCI. In addition, interferences from matrix effects are less in APCI than in ESI. Therefore, for the measurement of 1,25(OH)₂D or 24,25(OH)₂D APCI is preferred as it reduces matrix effects and improves sensitivity (56).

Interferences from isomeric and isobaric compounds represent a common problem in MS that can also affect the measurement of vitamin D metabolites in serum or plasma (27,57). This problem can be minimized by sample pre-treatment with protein precipitation, extraction and derivatization. It should also be mentioned that 3-epi-25(OH)D₃ and 25(OH)D₃ co-eluted from standard C18 reversed-phase chromatography columns and exhibit identical mass spectra (58). Therefore, these two vitamin D species can only be identified and quantified when high resolution chromatography is used for separation (58).

Depending on the vitamin D metabolites to be measured different mass spectrometers can be used. The main characteristics that require attention when choosing a mass spectrometer are sensitivity and resolution. While sensitivity refers to the ability to measure low concentrations, resolution describes the capability of a mass spectrometer to distinguish ions with slight differences in molecular mass and measure them separately. Today, all manufacturers offer appropriate instruments with medium and high sensitivity that can be equipped with different ionization sources.

Calibration and standardization

The use of LC-MS/MS for the measurement of vitamin D metabolites does not guarantee accurate results. Blinded method comparison studies and EQA programs have repeatedly demonstrated substantial differences between individual LC-MS/MS methods (9,10). Without proper calibration and standardization comparable results between different LC-MS/MS are hardly achievable. Therefore standard reference materials (SRM) and RMPs have been developed. In 2009 the National Institute of Standardization (NIST) has released the first SRM for the measurement of vitamin D in human serum (SRM 972). It consists of four blood serum sample pools (Level 1 – Level 4) with varying levels of 25(OH)D and has certified values for 25(OH)D₂, 25(OH)D₃, and 3-epi-25(OH)D₃. A few years later SRM 972a was introduced, which also provides certified values for 24R,25(OH)₂D₃ (59,60). The first RMP for the measurement of 25(OH)D in serum has been published in 2010 by Tai et al. (2). This method is based on isotope dilution liquid chromatography tandem MS. A second RMP has been developed by Stepman et al. (61). Both RMPs measure 25(OH)D₂ and D₃. The method from Stepman et al. does also resolve interferences from 3-epi-25(OH)D₃. A few years later, Tai and Nelson have also developed a reference method for 24R,25(OH)₂D₃ in human serum (62).

In order to overcome the large discrepancies between commercial 25(OH)D assays the National Institutes of Health (NIH) Office of Dietary Supplements (ODS) established the VDSP in November 2010. This program aims to standardize the measurement of vitamin D by encouraging manufacturers to produce methods traceable to these RMPs. Participating manufacturers and laboratories receive 40 serum samples from apparently healthy donors with known concentrations 25(OH)D determined by a RMP. These samples are used for method calibration. Acceptable bias and imprecision are ±5% and ±10%, respectively. While VDSP has helped to improve substantially accuracy in samples from healthy subjects without interferences, unresolved problems remain in special populations, such as pregnant women, hemodialysis patients, patients with osteoporosis or heterophilic antibodies. This fact is illustrated by EQA programs, such as the Vitamin D External Quality Assessment Scheme (DEQAS). Average differences between manufacturers can exceed 60 ng/mL (150 nmol/L) (63).

For other vitamin D metabolites SRMs and RMPs have not been developed yet, which impedes standardization between laboratories and manufacturers.

Commercial vitamin D LC-MS/MS assay

Because of the increasing demand for mass spectrometric analyses of vitamin D commercial assays become increasingly available (e.g., MassChrom 25-(OH)-Vitamin D₃/D₂, Chromsystems; ClinMass^® LC-MS/MS Complete Kit for 25-(OH)-Vitamin D₂/D₃, Recipe, Vitamin D combi ImmuTube^®, Immundiagnostik AG). Most of them measure 25(OH)D₃ and D₂. These kits include lyophilized materials for calibration and quality control, stable isotope-labeled internal standard compounds, sample preparation materials, mobile phases and analytical columns. However, not all kits contain internal standards for 25(OH)D₂. Moreover, only some assays resolve and quantify 3-epi-25(OH)D₃. EQAs demonstrate good accuracies for most commercial 25(OH)D LC-MS/MS assay kits. Recently, Thermo Scientific™ has released the Cascadion™ SM System, which is a fully automated LC-MS/MS random access analyser. In addition, a CE-IVD compliant ready to use reagent kit with controls and calibrators for the measurement of 25(OH)D₃ and D₂ is available for this instrument. A first preliminary validation study showed good linearity, a wide analytical range and acceptable precision. Accuracy data were performed using Unity Real Time controls from Bio-Rad (California, USA) (64).

A multiplex method (ImmuTube^® LC-MS/MS assay) for the determination of determines 25(OH)D₃, 25(OH)D_2, 1,25(OH)₂D₃ and 24,25(OH)₂D₃ was recently released by Immundiagnostik AG (Bensheim, Germany). If accurate, the parallel quantitation of these metabolites (chromatograms are shown in Figure 2) would be a substantial step forward, especially for researchers studying vitamin D metabolism. An own evaluation of this product on a SCIEX QTRAP 4500 (Applied Biosystems, Framingham, MA, USA) coupled to an Agilent 1260 Infinity HPLC system (Agilent Technologies, Santa Clara, USA) confirmed acceptable dynamic ranges, LoQ and imprecision within the manufacturers claims. However, recovery was poor for 25(OH)D and 24,25(OH)₂D, which raises doubts about the specificity for these metabolites (Table 2).

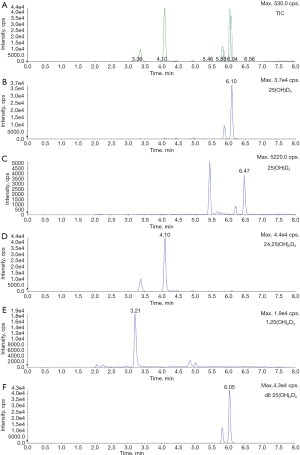

Figure 2 Representative chromatograms with the Vitamin D combi ImmuTube^® LC-MS/MS assay: total ion chromatogram (TIC) (A); chromatograms of the vitamin D metabolites 25(OH)D₃ (B), 25(OH)D₂ (C), 24,25(OH)₂D₃ (D), 1,25(OH)₂D₃ (E) and the internal standard d6 25(OH)₂D₃ (F) with their retention times.

Conclusions

LC-MS/MS is considered the golden standard for the measurement of vitamin D metabolites. In addition, LC-MS/MS allows the parallel measurement of several metabolites. However, a range of pre-analytical and analytical aspects require careful consideration. These aspects include sample type, protein precipitation, analyte extraction, derivatization, chromatographic separation ionization and capabilities of the mass spectrometer. Calibration, standardization and the use of internal standards are other important issues that impact on the accuracy of results. Only well designed methods that are continuously controlled by internal and external quality control allow an accurate and stable measurement 25(OH)D. Other metabolites, such as 1,25(OH)₂D and 24,25(OH)₂D, are not yet standardized and comparable results between laboratories are difficult to obtain.
