Validation of urine citrate and oxalate measurement on the Roche Cobas^® c502 chemistry analyzer

Introduction

Citrate and oxalate are important urine markers in the formation of kidney stones. Urine citrate is a major inhibitor of stone formation and hypocitraturia is considered a risk factor for urolithiasis (1). Increased oxalate is a risk factor for stone formation, as oxalate excreted by the kidney can combine with calcium to form calcium oxalate stones (2,3). Measurement of urine citrate and oxalate can help guide treatment as well as urolithiasis prophylaxis (4,5).

Urine citrate and oxalate are not routinely measured in clinical laboratories as most available methods entail multiple manual steps or techniques that are not readily available (6-9).

Various methods that have been published in the literature include capillary zone electrophoresis, three-channel ion chromatography, liquid chromatography tandem mass spectrometry (LC-MS/MS) and nuclear magnetic resonance (NMR) (9-13). These methods often require complex equipment that necessitates skilled personnel and as such, are not routinely available in most clinical laboratories.

Measurement of urine citrate and oxalate is often combined with other analytes such as electrolytes, calcium, and uric acid when determining a patient’s risk for kidney stone formation. These latter analytes are typically measured on large-scale automated chemistry platforms. As such, the availability of urine citrate and oxalate assays on the same equipment could improve workflows, maximize laboratory efficiency, and result in a decreased turn-around time for results to be available.

To the best of our knowledge, there are no published studies that have evaluated citrate and oxalate on an automated clinical chemistry platform. Running these assays on such an instrument could allow adoption of these tests into more clinical laboratories. We therefore sought to validate citrate and oxalate on a routine chemistry analyzer (Roche Cobas^® c502 instrument, Roche Diagnostics, Laval, QC, Canada) using third-party reagents that utilize end-point enzymatic spectrophotometric assays. Precision, bias, linearity, functional sensitivity, and both frozen and refrigerated stability were assessed.

Methods

Participants in the current study included patients >18 years who had 24-hour urine samples collected for oxalate and citrate measurement as part of standard of care from January 31, 2021 to March 31, 2022.

Urine specimens for citrate and oxalate measurement were collected without preservative and were kept refrigerated during collection and prior to testing. Samples for oxalate measurement were acidified using 6N HCl within 24 hours of the end of the collection period. Oxalate specimens were further pre-treated prior to testing, where urine was pipetted into sample purifier tubes containing activated charcoal before being mixed then centrifuged (5 minutes, 2,000 rpm) according to the manufacturer’s instructions.

All samples were tested on a Roche Cobas^® c502 instrument as part of a Roche Cobas^® 8000 automation track using third party reagents (Citrate, Biomedical Enterprises, Milano, Italy; and Oxalate, Trinity Biotech, Jamestown, NY, USA). Briefly, in these assays, citrate is converted to oxalacetate and acetate by the enzyme citrate lyase. A subsequent reaction reduces NADH to NAD⁺ in the presence of malate dehydrogenase and lactate dehydrogenase. The change in absorbance is determined at 340 nm. For the oxalate assay, oxalate is oxidized to carbon dioxide and hydrogen peroxide by oxalate oxidase. The hydrogen peroxide reacts with two chromogens in the reagent to yield an indamine dye that is absorbed at 590 nm.

We assessed precision by running two levels of vendor-supplied quality control (QC) material twice per day (morning and afternoon) for a total of 20 days. We also assessed precision using two patient specimens—one for citrate and one for oxalate which were run five times per day over a 5-day period. Next, we verified bias of both assays by comparing n=41 (citrate) and n=46 (oxalate) patient specimens on our Roche Cobas^® 8000 c502 instrument to results from a referral laboratory that also utilizes an enzymatic method for both analytes (In Common Laboratories, Toronto, ON, Canada). Samples were sent to the referral laboratory refrigerated with next day delivery. Linearity was assessed across the measuring range for both assays using diluted patient specimens that were measured in triplicate. We verified the vendor’s limit of quantification (LoQ) by diluting a patient specimen with saline to 0.05, 0.04, and 0.02 mmol/L for citrate and to 0.3, 0.2, and 0.1 mmol/L for oxalate. Each diluted specimen was measured 10 times in a single run. The LoQ was determined to be the lowest concentration where a coefficient of variation (CV) <20% could be achieved. Lastly, 14-day refrigerated (4 ℃) and frozen (−20 ℃) stability was assessed for both analytes using pooled patient urine. After initial measurement of oxalate/citrate concentration (noted as timepoint 0 hours), aliquots were made and stored either refrigerated or frozen for the 14-day study period. A fresh aliquot from each storage temperature was tested daily and a change less than 10% (based on our laboratory’s total allowable error goal) was deemed acceptable.

All results were analyzed in EP Evaluator (Version 12.3.0.2; Data Innovations LLC, Colchester, VT, USA) and the total allowable error that was used to determine assay acceptability was set to 10% for both analytes. This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Research Ethics Board of Horizon Health Network (File #2022-3116). A waiver of consent for secondary use of personal information was approved in accordance with TCPS2 requirements.

Results

Using QC material, we determined that the imprecision of the citrate assay as determined by calculation of the CV was 3.0% and 2.0% at a concentration of 1.18 and 2.07 mmol/L, respectively. The CV of the patient pool was 2.9% at a concentration of 1.07 mmol/L. For oxalate, we observed a CV of 4.0% and 2.4% at a QC concentration of 0.24 and 1.10 mmol/L, respectively. The CV of the patient pool was 4.3% at a concentration of 0.25 mmol/L.

We found minimal bias between results on the Roche Cobas^® c502 instrument compared to the enzymatic method used at the referral lab. The average bias was 1.5% for citrate while the slope was 1.043 (95% CI: 0.978 to 1.109), y-intercept was −0.094 (95% CI: −0.352 to 0.164), and correlation coefficient (R) was 0.9810 using Deming regression (Figure 1). Oxalate also compared well against the reference laboratory (Figure 2) with an average bias of −0.467%, slope 0.934 (95% CI: 0.843 to 1.024), y-intercept of 0.023 (95% CI: −0.013 to 0.059) and correlation coefficient of 0.9495.

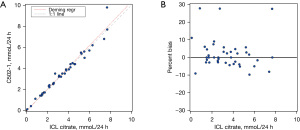

Figure 1 Deming regression (A) and % bias plots (B) of citrate (n=41). ICL citrate denotes the citrate concentration obtained from the referral laboratory, ICL using an enzymatic method. C502-1 denotes concentrations obtained from the Roche Cobas^® 502 instrument. Deming regr, Deming regression; ICL, In-Common Laboratories.

Figure 2 Deming regression (A) and % bias plots (B) of oxalate (n=46). ICL oxal denotes the oxalate concentration obtained from the referral laboratory, ICL who uses an enzymatic method. C502-1 denotes concentrations obtained from the Roche Cobas^® 502 instrument. Deming regr, Deming regression; ICL, In-Common Laboratories.

The citrate assay was determined to be linear over a concentration range of 0.05–4.50 mmol/L while the oxalate assay was linear from 0.11–1.17 mmol/L. The LoQ for citrate was 0.05 mmol/L and the LoQ for oxalate was <0.12 mmol/L (the lowest concentration that was tested which exhibited a CV of 2.9%). Lastly, we assessed both refrigerated and frozen stability for both analytes; both citrate (Figure 3) and oxalate (Figure 4) were stable for 14 days refrigerated and frozen as determined by an average change ≤10% or <0.2 mmol/L from the initial baseline measurement at each time point.

Figure 3 Refrigerated (A) and frozen (−20 ℃; B) stability of citrate determined over a 14-day period. The x-axis denotes the day for each measurement and the y-axis denotes the % change from the initial baseline measurement. The dotted red lines represent ±10% difference of baseline.

Figure 4 Refrigerated (A) and frozen (−20 ℃; B) stability of oxalate determined over a 14-day period. The x-axis denotes the day for each measurement and the y-axis denotes the % change from the initial baseline measurement. The dotted red lines represent ±10% difference of baseline.

Discussion

Measurement of urine citrate and oxalate are routinely requested by urologists in patients at risk of kidney stone formation. It is often combined with other routine urine tests (calcium, magnesium, uric acid, electrolytes) which are offered in most clinical laboratories. As such, being able to test urine oxalate and citrate along with these other analytes on a single platform can offer significant improvements to clinical service as well as more efficient laboratory services. In this study, we demonstrate that urine citrate and oxalate can be easily adapted onto a routine clinical chemistry analyzer in combination with third-party reagents. Our results showed acceptable precision for both citrate and oxalate assays, as determined by low CVs with both QC material and patient samples. Further, the average bias for citrate and oxalate assays was minimal. Assay linearity across the measuring range was also demonstrated for both citrate and oxalate, as was the functional sensitivity, with acceptable LoQ determined for both analytes. In addition, we also established 14-day stability for both analytes at refrigerated and frozen temperatures.

To the best of our knowledge, this is the first study to demonstrate acceptable performance of an enzymatic citrate assay on a large-scale automated analyzer. Others have evaluated citrate measurement using a variety of other methodologies; however, most of these are not easily amenable to the clinical laboratory. Specifically, Matyus et al. recently developed a high-throughput method for measuring urinary citrate using NMR spectroscopy (12). This assay demonstrated robust performance, with acceptable imprecision and bias, and showed potential for simultaneous multiplexing with other urine metabolite marker assays, including creatinine. However, the instrument used in this study is a stand-alone piece of equipment. Incorporation of citrate on a clinical chemistry automation track allows for improved throughput in a high-volume clinical laboratory.

Simultaneous measurement of citrate and oxalate has also been demonstrated by others using ion chromatography (10) and capillary electrophoresis (9). Both of these studies showed imprecision <8% and percent recoveries of spiked samples ranging from 99% to 102%. While our method has a common goal with these studies of providing validated quantification of urinary markers involved in stone formation, it uniquely leverages the practicality and efficiency of routine chemistry analyzers for broader application.

Others have evaluated use of a similar enzymatic end point spectrophotometric assay to measure urinary oxalate (14). Specifically, Ruiz Santamaria et al. validated an assay that also uses oxalate oxidase and was combined with manual spectrophotometric measurements from urine specimens obtained from 26 healthy individuals (14). The assay showed acceptable imprecision (CV <8.0%) and was linear up to 0.89 mmol/L. Our study builds on these findings by showing that a similar oxalate assay can be easily adapted for use on an automated chemistry analyzer. Furthermore, we also showed that the assay was linear beyond what was reported in this study.

There are a few limitations with our study. Validation was limited to a single vendor’s instrument. It will be important to determine if the results obtained in this study hold true if the third-party reagents are used on another vendor’s instrumentation. In addition, our study was conducted at a single centre, and therefore may not generalize to other labs where standard operating procedures may differ. As well, the comparative analysis of results was performed with a single referral laboratory. Future multi-centre studies as well as comparisons with additional reference laboratories could provide further assurance of the robustness of the assays. Lastly, it would be beneficial to repeat stability experiments at higher concentrations, where risk of crystal formation is higher. We were limited by the patient specimens we received in our laboratory that had sufficient volume to allow for measurement over the 14-day stability experiment.

Conclusions

In conclusion, our results demonstrated that the use of the Roche Cobas^® c502 instrument, combined with third-party reagents, can provide accurate, reliable, and stable measurements of urinary citrate and oxalate. The assays studied showed acceptable precision, minimal bias, satisfactory linearity, sensitivity, and stability under refrigerated and frozen conditions. Our study supports the measurement of citrate and oxalate on automated clinical chemistry analyzers which can lead to significant improvements in the service and cost savings of labs performing these assays.
